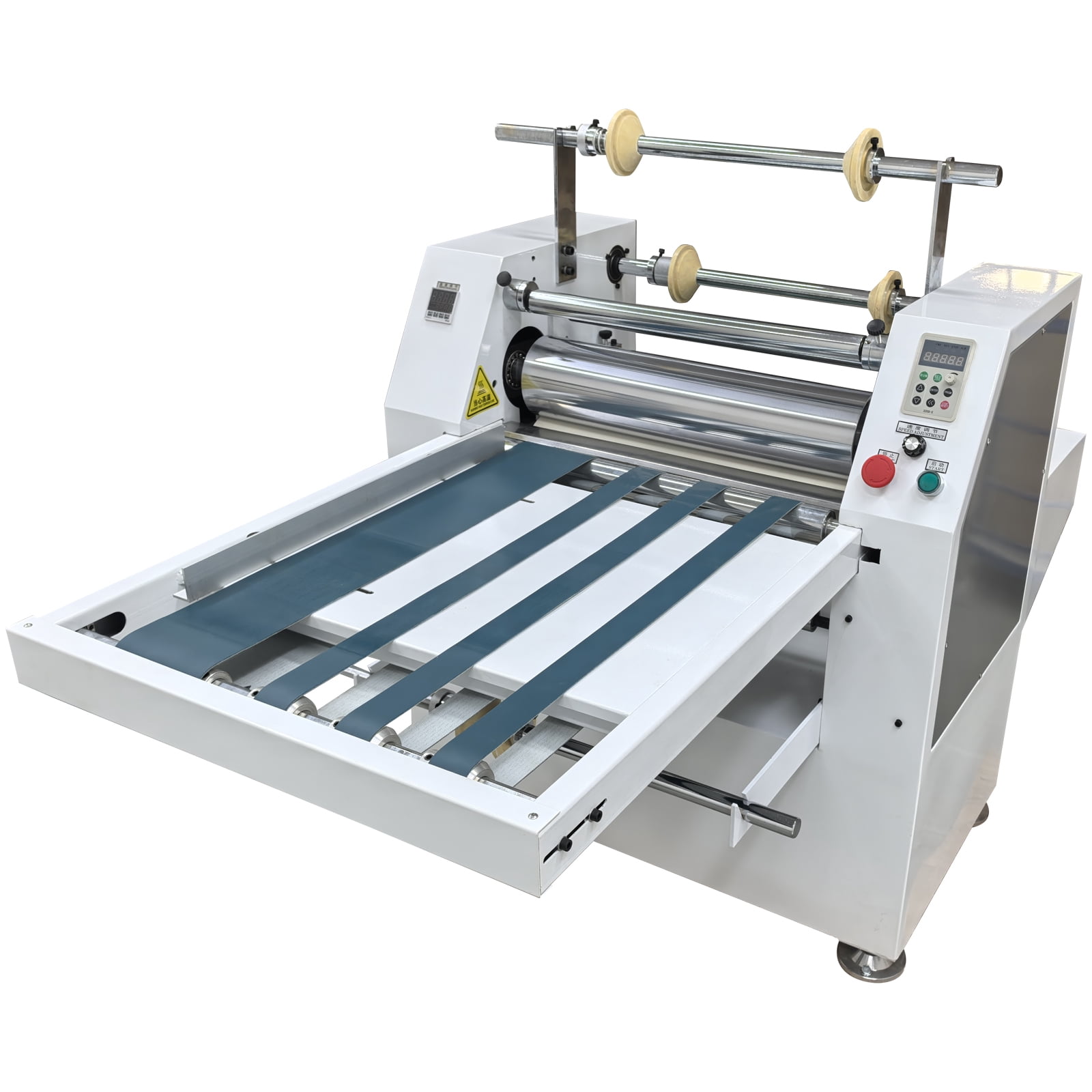

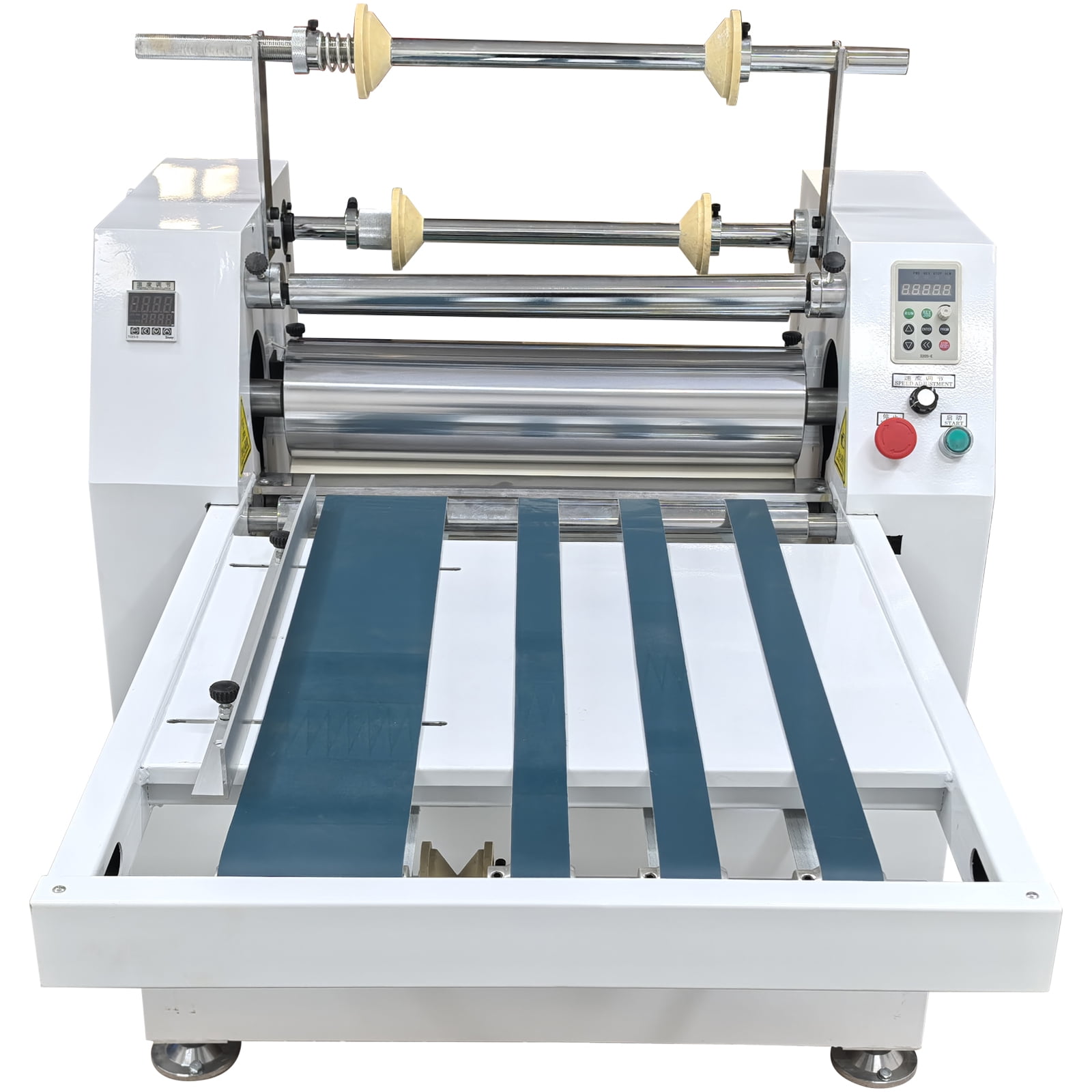

17.72in Thermal Roll Laminator Steel Roller Laminating Machine 110V 0~15m/min with Conveyor Belt and Winding Mechanism

<p>Product Overview<br>The automatic steel roller thermal laminating machine is a professional and efficient laminator, which can continuously press the films (BOPP film, pre-coating film, protective film, etc.) with the printed matter to make the printed matter have smooth surfaces, bright colors and clear lines. It has the advantages of resisting water, keeping cleanliness and increasing the strength of the paper. The machine is applicable to paper, packaging cartons, ABS coils, non-woven materials and so on, is an ideal device for improving the printing product quality.<br>This machine can achieve single-sided lamination and roll-to-roll combination. It has a compact structure, stable, safe and reliable operation and small occupied space. It is easy to move and suitable for different application scenarios, such as printing shops and packaging factories.</p> <p>Product Parameters<br>Model: ZXFM-520J<br>Maximum laminating width: 450mm (17.72in)<br>Applicable material: ≤8mm (0.31in) in thickness<br>Laminating speed: 0~15m/min (0~49.21ft/min); Stepless variable-frequency speed regulation<br>Laminating temperature range: 0~140˚C<br>Pressure range: Cam Spring type Pressurization<br>Heating mode: Electric heating built-in mirror tube<br>Feeding frame: Conveyor belt type automatic feeding frame<br>Collecting and unwinding frame: Manual deviation correction fine adjustment film unwinding frame, backing paper winding, discharged material winding<br>Voltage: 110V<br>Total power: 2Kw<br>Machine size: 90*142*110cm (35.43*55.91*43.31 inches)<br>Net weight: 159KG (350.53LBs)</p> <p>Operation Method<br>1. Assemble the machine correctly, and install the film roll, the backing paper winding roll and the finished product winding roll appropriately.<br>2. Connect the machine to the 110V power supply with reliable grounding.<br>3. Turn on the power switch, set the heating temperature as needed, and the machine starts heating.<br>4. After the laminating temperature reaches the set temperature, turn on the start button, and the machine starts running.<br>5. Place the paper to be laminated on the conveying platform, and the paper is automatically fed into the machine and subjected to laminating operation.<br>6. In the laminating process, the backing paper can be automatically wound, and the finished product is also automatically wound.<br>7. After accomplishing the laminating operation, press the stop button, disconnect the power supply, use the adjusting handwheel to separate the rollers to avoid roller deformation, and clean the machine thoroughly.</p> <p>Item Included (120130): <br>1 x Steel Roller Thermal Laminator 110V</p>

• The temperature regulator achieves precise adjustment of heating temperature and clear digital display of the present temperature and set temperature, and facilitates real-time monitoring of the heating state during operation.

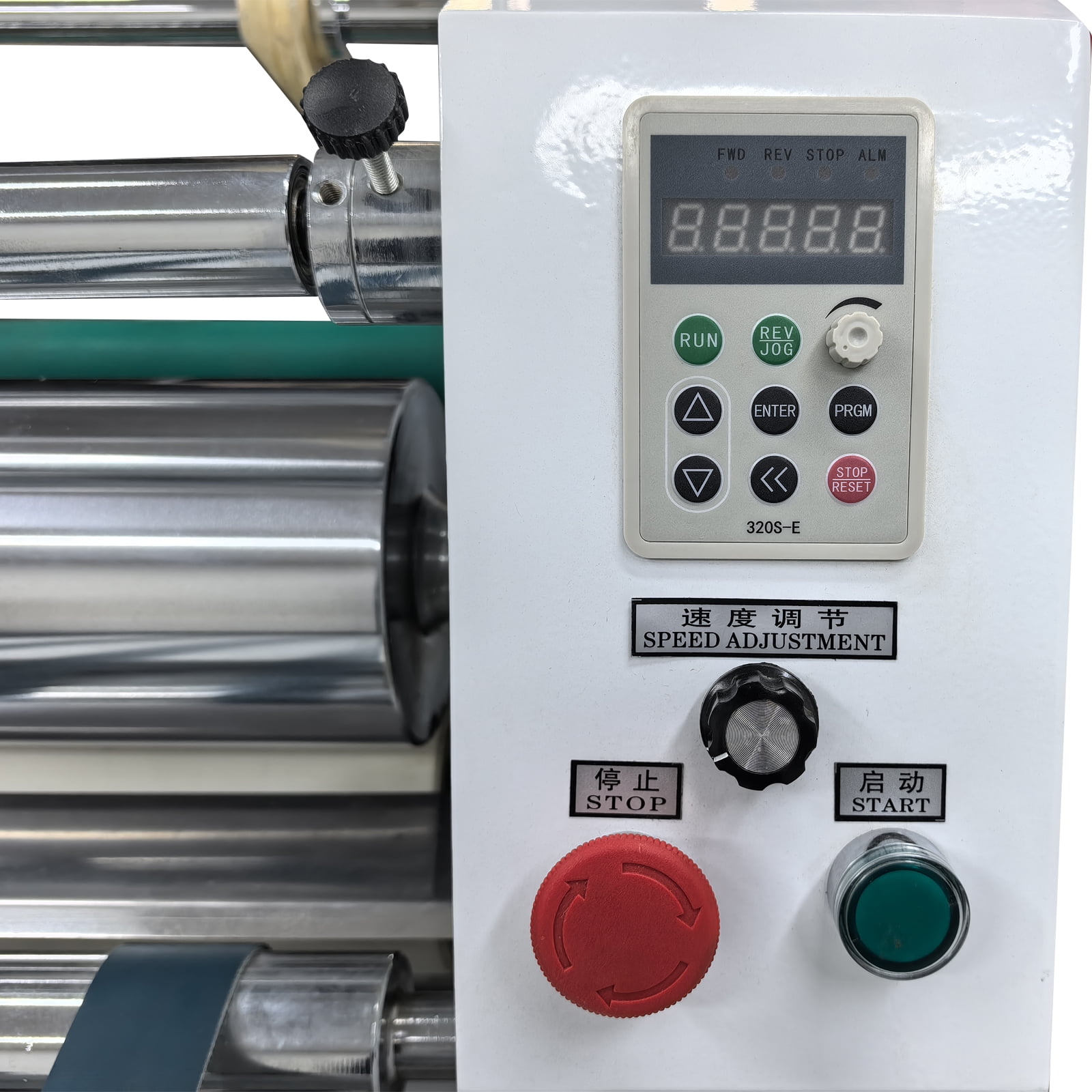

• The variable-frequency speed regulation controller can clearly display the adjusted frequency and is simple in structure and convenient to observe. The speed adjusting knob is easy to use and good in adjustment precision.
• The lengthened conveyor belt mechanism is adopted to achieve automatic feeding of paper, the feeding process is smooth and stable, and the conveying deviation of paper can be effectively avoided by means of the design of the side leaning baffle.
• The steel roller is subjected to mirror polishing and chrome plating treatment, can be completely attached to the surfaces of the film and base materials in the press-fit process, and is resistant to high temperature and uniform in temperature distribution.

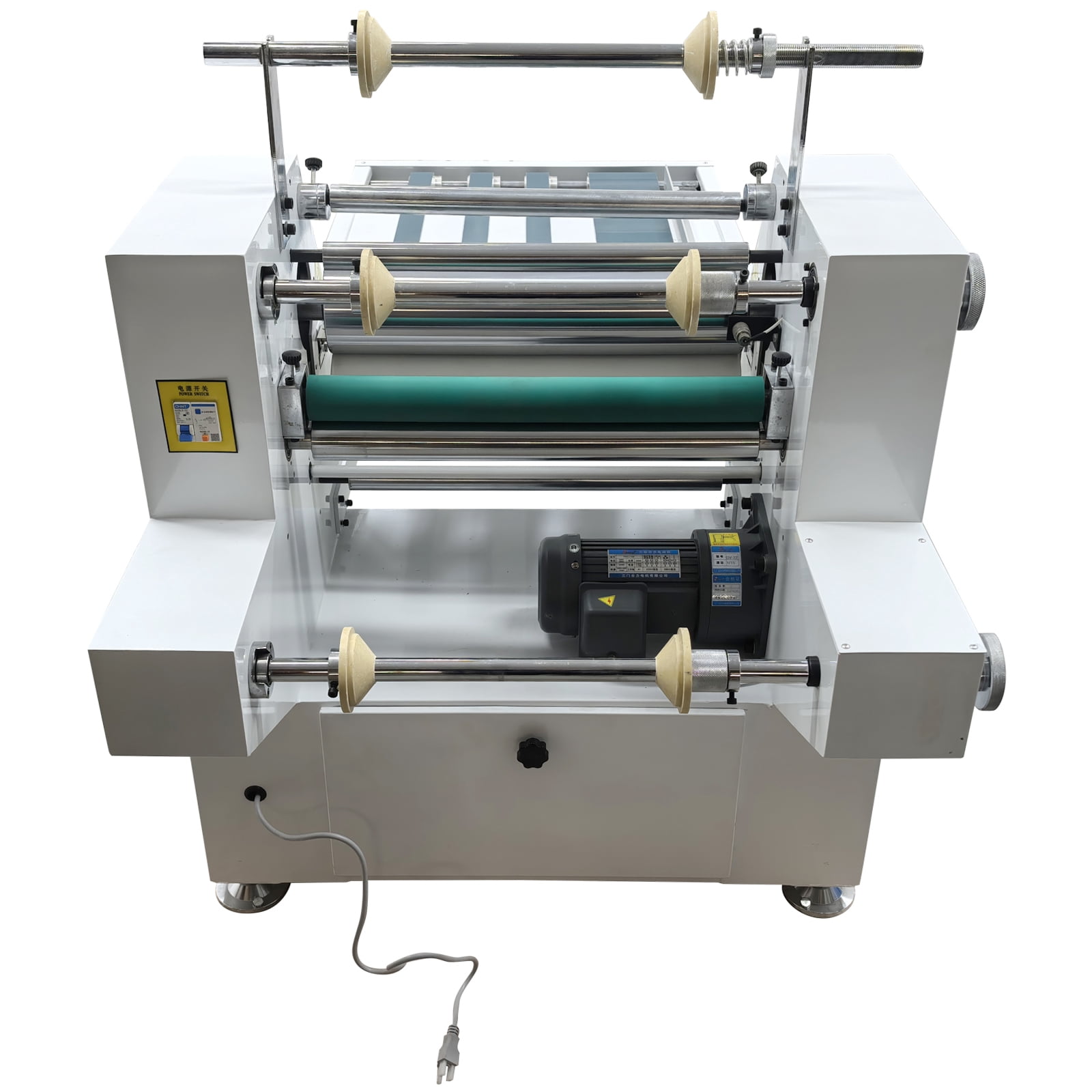

• The winding force adjusting wheel is designed for effectively adjusting the winding force of the winding mechanism an ensuring the materials are wound evenly and properly. The adjusting wheel is simple in structure and convenient to adjust and use.
• The roller gap adjusting handwheel can be used for controlling the two rollers to be pressed together or separated from each other as needed, and the wavy antislip edge meets the ergonomic standard and makes rotation save more labor.
